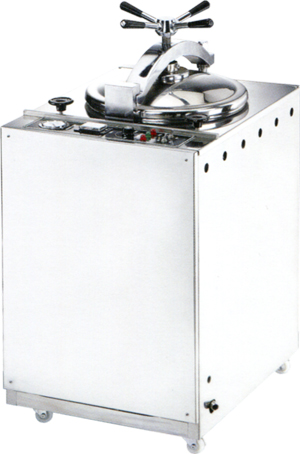

SEMI-AUTOMATIC VERTICAL HIGH PRESSURE
STEAM STERILIZER
MODEL VA-46A / VA-82A
FEATURES
Semi Automatic Control vertical high
pressure
steam sterilizer / autoclave.
Space Saving and Easy to Operate.
Durable and Time Efficient designed
steam
sterilizer with high volume capacity.
Design for High Pressure Sterilization such
as
liquids, test tubes, glasswares, surgical
instruments,
garments, human waste
products and others.
Easy to Operate just fill the chamber with
clean
distilled water, turn on the power
source and set the
required sterilizing
temperature and time on the control
panel.
Micro-Processor Digital Timer can be set
from
0 ~ 99 minutes.
Each Operations and Cycles are displayed
and
indicated by pilot lamps.
Buzzer announces completion of
sterilization and cuts
off the heating power
source.
Durable Polished Outer Cover and Chamber
is made from high quality stainless steel material.
Silicone Rubber Gasket is applied evenly on the
pressurized door.
Door is opened and locked manually through the door
handle by rotating it.
Sterilizing Process: Heat > Sterilize > DRYING
(OPTIONAL) >
Alarm > Manual exhaust >
Cycle ends.
|
|
SAFETY DEVICE
Pressure Safety Valve: Releases excessive steam
build up in the chamber.
Overheating Protection Device: High Temperature
deviation in the chamber actuates protective device and
cuts off heating source immediately.
Pressure Switch. |
STANDARD ACCESSORIES
Sterilizing Basket (Half Size)
Users Manual |
TECHNICAL SPECIFICATIONS
MODEL |
OPERATION
MODE |
CHAMBER SIZE (CM) |
CAPACITY
(LITERS) |
WORKING
TEMPERATURE |
WORKING
PRESSURE |
TIMER
(MINUTES) |
HEATING
ELEMENT |
| VA-46A |
SEMI
AUTOMATIC |
£X30 x D66 |
46 |
127°C |
1.5Kg/CM2 |
0 ~ 99 |
4 KW. |
| VA-82A |
£X40 x D66 |
82 |
|
