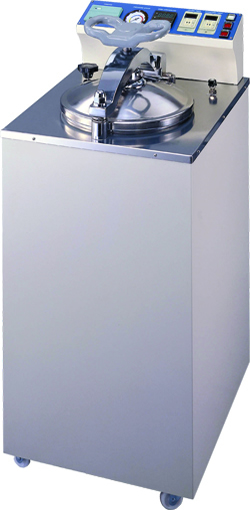

MICROPROCESSOR CONTROLLED
AUTOMATIC VERTICAL AUTOCLAVE
MODEL VA-3420P / VA-3430P series

FEATURES
Space Saving Design, easy to operate, durable,
time efficient steam sterilizer with large capacity.
Designed for High Pressure Sterilization of such
items: Test tubes, Glassware, Liquids, Surgical
instruments, Garments, Human waste products and
other items.
Fully Automatic Operation.
Digital Steriling Timer / Drying Timer.
Microprocessor Controlled Temperature.
Buzzer announces completion and cut off the power.
Polished Stainless Steel Chamber, Jacket and
Door with silicone rubber door gasket.
Outer Cabinet is made of epoxy coated mild steel.
Sterilization Temperature / Pressure is
manually adjustable from 120°C to 132°C, 2kg/cm2.
It takes only 5 minutes to sterilize unwrapped loads
(not including sterilizing temperature build up time).
Automatic Air Vent expels unsaturated steam
from the chamber.
Timer starts only after the pre-set pressure is reached
ensuring problem free sterilization.
Specially Designed Drying Device includes
drying heater, temperature regulator and time, ensures
efficient drying of garments, instruments, and rubber items.
Optional Thermal Printer keeps records of all
sterilization process, time and date.

SAFETY DEVICES
Buzzer sounds and cuts off power incase of insufficient
water levels.
Double safety valves release excess steam (if pressure
rises over 2kg/cm2).
Mounted on four heavy duty casters for easy mobility.
Sensitive exhaust valve releases steam slowly and
eliminates spillage when sterilizing liquids.
The Parameter of Full Cycle including time, temperature
and pressure are printed out automatically by a
built - in thermal printer (OPTIONAL).

STANDARD ACCESSORIES

Stainless Steel Wire Basket
Rubber Hose
Shelf
Users / Operators Service Manual
