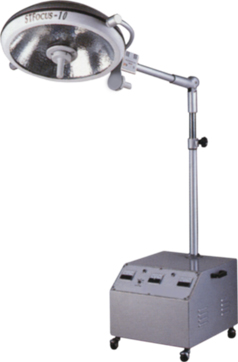

EMERGENCY UPS MOBILE STAND
SURGICAL OPERATING LIGHT
MODEL STFOCUS-10E

FEATURES
High light intensity and deep cavity illumination.
Minimum shadows and color corrected light
Cold light ray.
Maximum focusing filed.
Changing bulb without tools.
Easily move by sterilizable handle.
Focusing adjusted by sterilizable handle.
Sealed lamp head and smooth surface for easy cleaning.

TECHNICAL SPECIFICATIONS
Light Intensity: 120,000 Lux.
Halogen Bulb: 24v. 150watts.
Bulb Life: Approx. 1000Hrs.
Color Temperature: 4300°K.
Heat Absorption: 99%.
Color Rendering Index: 93
Dept of Illuminted Field: 60cm.
Diameter of Illuminated Field at 1m: 18cm.
Temperature Increase Near Head: Approx. 2°C.

AIR FLOW
APPLICATIONS
One shaped lamp head with
aerodynamic design that
achieve laminar motion of a
fluid on the ceiling of
operation room, and
minimuze turbulances to be
restricted below the lamp
head to provide a fresh zone
on surgical procedures.

AUTOMATIC BULB
CHANGEOVER
SYSTEM
The lamp head includes two
bulbs, a secondary bulb is
positioned next to the
primary bulb to serve as a
back-up in the event of the
primary bulb fails, the
secondary bulb will illuminate
automatically if the primary
bulb has failed.



CONTROL PANEL

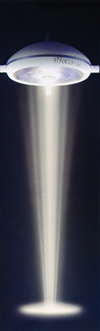

DEEP BRIGHTNESS
The multi-faceted reflector provides a precise
distribution of light in the surgical field surface, its
light intensity is up to 120,000 Lux with numerous
focal points on overlapping levels cause an optimum
depth of illumination and perfect shadow effect.
