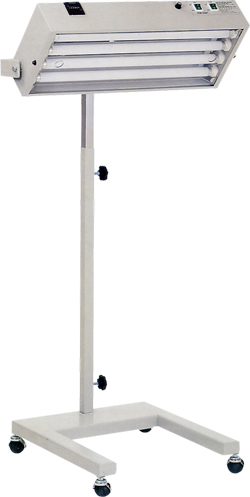

PHOTO THERAPY LIGHT
MODEL : P-222

The simpliest and standard type of photo therapy device.
Economical standard design.
Widely used in treatment of hyperbilirubinemia yet highly
efficient and easy to operate.
Can irradiate large surfaces of the body, can be
positioned close to infant providing high average
spectral powers.
Equip with four (4) fluorescent tubes
[white or blue color of your choice].
Non-Sectional Height Adjustable.
Five (5) angles of irradition.
With Hour Meter to set time of required therapy.
Easy to Change fluorescent tubes without tools needed.

TECHNICAL SPECIFICATIONS

DIMENSION : (L)75 x (W)46 x (H)110 ~ 145cm.
LAMPHEAD DIMENSION : (L)75 x (W)26 x (H)11cm.
HEIGHT RANGE : Adjustable 100 ~ 140cm.
FLUORESCENT TUBES : 20 watts [white or blue color]
[photo therapy tubes]
IRRADIATION TUBES : 20 watts x 4pcs of 3000 hours
of effective life
IRRADIATION POSITIONS : Horizontal : 0° ;
Vertical : 22.50°, 45.0°, 67.50°, 90°
PLEXIGLASS PROTECTOR : Tool Free
AIR FLOW COOLING : 1200 ~ 1750L / min.
FAN NOISE : <50db
HOUR METER : 0 ~ 9999 Hours
POWER CONSUMPTION : 160 watts

STANDARD ACCESSORIES

EYE SHADE PROTECTORS
