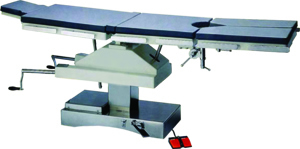

SEMI ELECTRIC
HYDRAULIC CONTROLLED
OPERATING TABLE
MODEL
OT-700 (STANDARD)
OT-700A (WITH X-RAY SHEET)
FEATURES
Operating
Table is designed to offer various position
of
any
part of the body.
It can be used for General
Surgery such as,
Gynecological
position,
Urologic position,
Proctologic position,
Thyroidectomy
position,
Gall bladder position,
Trendelenburg / Reverse Trend.
position,
Flex /
Reflex position,
Extension position,
Full
chair position, etc.
Control of Table Top Movement toward left / right
and
ascent/ descent of
back and seat
section are controlled
by a two
rotating cranks located under the headrest.
Table Top Mattress may easily cleaned.
Table Base is covered by Stainless Steel Plate
equipped
with
a brake system which is controlled
by a
foot pedal as
well to
stop
or free the table to move, there are four heavy
duty
casters located under the table base.
Operating Table can match
every optional accessories suitable for any
operation proceedures.
Most
of the accessories are
constructed by
stainless steel. |
|
|
|
STANDARD
ACCESSORIES
Headrest: 1pc
Screen Frame: 1pc
Shoulder Support: 1pr
Armrest: 1pr
Body Support: 1pc
Mattress: 1set
Lateral Support: 1pc
Foot Support: 1pr
Knee Crutches: 1pr
X-Ray Radiographic Sheet: 1set (OT-700A Only) |
OPTIONAL
ACCESSORIES
OTA-1620: Restraint
Strap
OTA-1625: Hand Grips
OTA-1623: U-Shape Headrest
OTA-1622: Raised Armrest
OTA-1626: Stainless Steel Funnel & Waste Receptacle
with
Corrugated Tubing
OTA-1624: Kidney Elevator
OTA-1630: 360° Rotation
Device |
TECHNICAL SPECIFICATIONS
| TABLE TOP DIMENSIONS |
(L)195 x (W)55 x (H) 73 ~ 103CM (WITHOUT MATTRESS) |
| LATERAL TILT (LEFT / RIGHT) |
20° / 20° |
| TRENDELENBURG / REVERSE TRENDELENBURG |
30° / 30° |
| BACK SECTION TILT ANGLE (UP / DOWN) |
40° / 25° |
| SEAT SECTION TILT ANGLE (UP / DOWN) |
35° / 25° |
| LEG SECTION TILT ANGLE (UP / DOWN / SPLIT) |
0° / 90° / 180° |
| HEAD SECTION TILT ANGLE (UP / DOWN) |
25° / 90° |
| POWER |
AC 220V 50Hz or 60Hz |
|
|
| |
|
|
