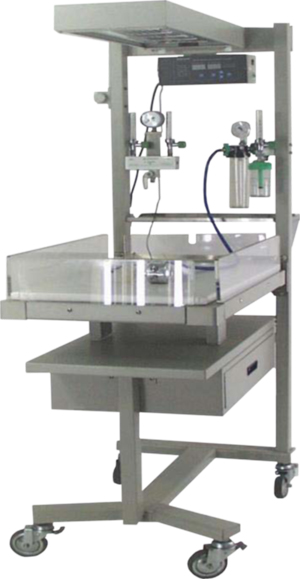

INFANT CARE CENTER
[INFANT RADIANT WARMER]

IC-SCC [STANDARD SERVO / MANUAL]
IC-SCCN [WITH OXYGEN DELIVERY SYSTEMS]

IC-SCA [ADVANCE SERVO / MANUAL]
IC-SCAN [WITH OXYGEN DELIVERY SYSTEMS]

FEATURES
SYSTEM PRE-OPERATION CHECK UP
Digitalized control system runs self checks upon each
powering up.
All built in features are ensured for proper operation and
functionality unless otherwise indicated by system
failure alarm.
COMPLETE ALARM SYSTEM
Includes audible and visual alarms alerts and remind
presonnels accordingly.
EASY OPERATING PROCEDURES
All numerical settings maybe done at a finger tip as the
control panel is digitalized.
EXCELLENT OPERATING BED
Soft mattress makes the stay of infant more comfortable.
Collapsible side walls give great and covenient access to
the infant when needed.
TOOL FREE TILTABLE BED
Sloppe of the bed may be adjustad to fit various medical
applications easily with the tool free design.
The bed can be adjusted at five different slopes to
maximize the easy of use of the operation table.
MILD ILLUMINATION
Illumination lamps are provided to give necessary light
for the care of the infants.
Each fluorescent light tube is protected with a crack
proof tube, therefor the risk of accidetal bumps on the
fluorescents tube are eliminated.
DRAWER AND MONITOR SHELF
The infant care center is provided with a drawer cabinet
for easy storage.
A monitor shelf is also provided for use of monitoring devices.


MODEL IC-SCC [N]
CONTROL PANEL


MODEL IC-SCA [N]
CONROL PANEL



SLOPE ADJUSTMENT
FUNCTION



OXYGEN HOOD
[ACRYLIC]



OXYGEN MONITOR
& CONTROLLER



OXYGEN BLENDER



ELECTRIC HYDRAULIC
AUTO HEIGHT
ELEVATION



OXYGEN DELIVERY SYSTEM [N MODEL]

OXYGEN CYLINDER

AIR ACTIVATED SUCTION

OXYGEN FLOWMETER|

REGULATOR

RESUSCITATOR + MASK + TEST BAG
[COMPLETE SET]

OXYGEN CONNECTING TUBE

OXYGEN MULTIWAY ADAPTOR



X-RAY CASSETTE
HOLDER
TECHNICAL SPECIFICATIONS
MODEL

IC-SCC

IC-SCA
CONTROL SYSTEM

MICRO-PROCESSOR
SERVO MANUAL

MICRO-PROCESSOR
ADVANCE SERVO MANUAL
CRIB SLOPE ADJUSTMENT

QUICK, TOOL-FREE 7 SECTIONS
HEATER SOURCE

FAR-INFRARED 600 WATTS
ALARM SYSTEM

A. SENSOR FAILURE
B. OVER HIGH / LOW TEMPERATURE
C. SYSTEM FAILURE
D. HEATING OVER 15 MINS.
E. POWER FAILURE [SOUND]
SKIN / BED TEMP.
CONTROL RANGE

28.0°C ~ 37.0°C
SKIN / BED TEMP. DISPLAY

25.0°C ~ 42.0°C
SKIN / BED
TEMPERATURE RESOLUTION

NONE

0.1°C
FLUORSCENT LAMP

20 WATTS x 2PCS
(WITH LAMP PROTECTION DEVICE)
EXTRA SOFT SKIN PROBE

1.3 x 2.6mm.
HIGH / LOW SKIN / BED
TEMPERATURE ALARM

SET ±0.5°C ~ 3.0°C
HEATER OUTPUT INDICATOR

0 ~ 100%

[DIGITAL] 0 ~ 100%
HEATER & LAMP DIMENSION

78 x 26 x 8cm.
[±2cm]
BABY CRIB DIMENSION

78 x 52cm. or 78 x 58cm.
[±2cm]
EXTERNAL & STAND DIMENSION

104 x 56 ~ 62 x 185cm.
[±2cm]
HEATER REFLECTOR
PATCHES

10PCS [DIA. 3.2cm.]
ELAPSE TIME DISPLAY

NONE

0:00 ~ 23:59 ~ 0:00
AUTO ALARM
AN INTERVALS OF 5 MINS. 1 SEC.
PER BLIP SOUND
REMOVABLE HEATER

OPTIONAL
PLANE MOVEMENT LEFT or RIGHT
70° or 90° CONVENIENT FOR X-RAY

STANDARD
PLANE MOVEMENT LEFT or RIGHT
70° or 90° CONVENIENT FOR X-RAY
